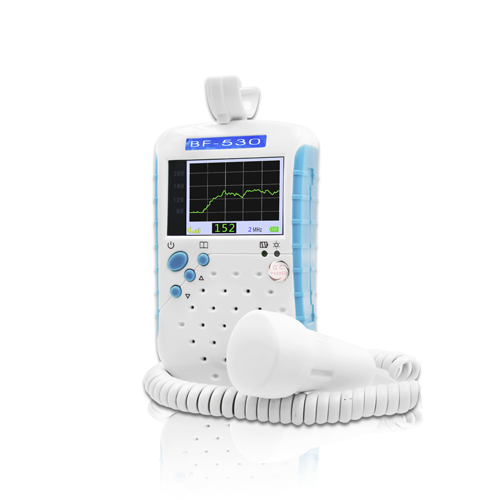

Pocket Fetal Doppler

Feature:

• Pocket Fetal Doppler mainly applies to detect the fetal heartbeat rate from the twelfth week;

• 2.4'' ultra-big LCD displays the FHR data, graphic (dual interfaces), real-time, date and battery capacity, volume of sound and alarm indicator etc..

• Built-in rechargeable battery can work continuously more than 4 hours

• TFT  LCD display for use conveniently at night;

• Automatic power off (one minute), self-detect function and alarm function when FHR is out of the normal range or battery power is in shortage;

• Only 270g, can be carried with conveniently with an earphone, gllus and portable handbag;

• Built-in speaker, collocate with earphone jack;

• Normative collection: USB interface for normative collocation, analysis software for option.

• 2.0MHz probe

• Software for option, Can connect with PC by USB.

Specification:

l  Executive standard: EN61266: 1995

l  Ultrasonic frequency: 2.0MHz±10%

l  Working mode: Continue Ultrasonic Doppler

l  Ultrasonic intensity: ≤10mW/cm2

l  Comprehensive Sensitivity: ≥90dB

l  FHR range: 60--210bpm(±2bpm)

l  Isptp: ≤0.1MPa

l  Battery: 9.6VNi-MH rechargeable batteries

l  Adapter input voltage: AC 100--240V 50Hz/60Hz

l  Rechargeable battery input voltage（no load）: DC 5V/1A

l  Maximum audio output intensity: ≤0.5W

l  Doppler frequency: 100--3000Hz

l  Static continuous working time: ≥4h

l  Automatic Dormancy time limit:1 minute

l  Working temperature: 10-40℃

l  Humidity: ≤80%

l  Atmospheric pressure: 86--106kPa

Certification:

The product approved by CE, Free sale certification. If you need copy of the files, please contact our sales.

Package:

l  Single Unit     Dimension: 26cm x 24cm x 12cm        Gross Weight: 1.5kg

l  6 pcs/carton   Dimension: 49cm x 26cm x 33cm        Gross Weight: 8.5kg

l  Normative collocation: charger, gel, small bag, gallus, operation manual, approval certification, warranty card
